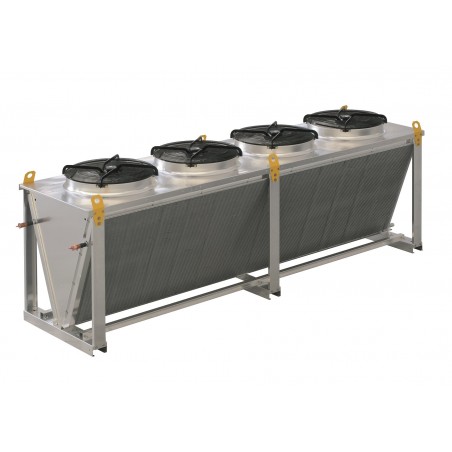

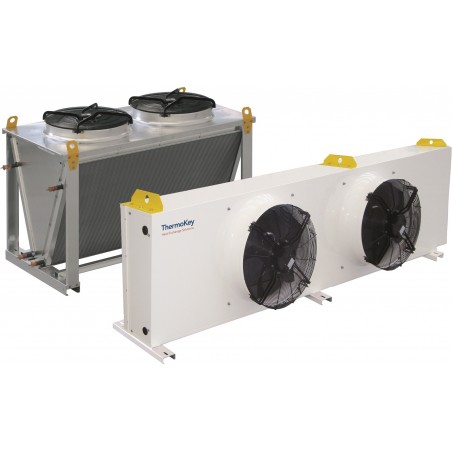

THERMOKEY MICROCHANNEL

Condensador THERMOKEY MICROCHANNEL

Condenser THERMOKEY MICROCHANNEL

• Aplicación: Condensación de gas
• Gama potencias desde 5 hasta 560 kW (R404A, Tc= 40 °C, T1= 25 °C)
• Diámetro ventiladores Ø 300, 400, 450, 500, 630, 800, 900 mm, motor AC o EC

Características técnicas:

• Carga de gas refrigerante reducida
• Posibilidad módulos, desde 1 hasta 8 ventiladores
• Medidas y peso reducidos
• No corrosión galvánica gracias a Long-Life-Alloy
• Consumos eléctricos y nivel sonoro bajos
• Accesorios disponibles

THERMOKEY, leader in the production of heat exchangers, presents a series of new air-cooled condensers with an innovative microchannel heat exchanger.

The M3C series by Thermokey, built entirely in aluminium, sets new construction and performance standards.

Thermokey anticipated well in advance the time acknowledging the market needs to adopt more innovative high performance heat exchangers and is now ready to provide a full range of new generation air-cooled condensers with microchannel technology, designed specifcally for the HVAC & R. With the help of sophisticated software for analysis of fuid fow characteristics, Thermokey has developed a range of all-aluminium condensers with microchannel coil, innovative in the type of fns and headers, characterized by a section of aluminium tube of 32 mm and an increased pipe thickness.

The refrigerant inlet and outlet connections are still in copper to facilitate the connection of the condenser to the refrigeration system and copper-aluminium joints are protected by shrink wrap. The reliability, corrosion resistance, reduction of refrigerant charge, low air side pressure drop, modular design, easy maintenance and cleaning, together with the compactness, and the lightweight, allow the reduction of overall costs with more than 90% recyclability. Moreover, at the same power with conventional models, the “footprint” is smaller, the necessary air fow is lower and therefore the electrical power consumption is signifcantly reduced.

The M3C condensers are designed to work with most common refrigerants such as R404A, R507A, R134A, R410A, R290, ..., R717. They can operate with a maximum working pressure of 45 bars, and are tested in the helium room up to 50 bar in accordance with CE 97/23 norm.

Modelos:

• THERMOKEY MICROCHANNEL
• THERMOKEY TURBO-LINE
• THERMOKEY TURBO-J

Consulte más datos técnicos en el catálogo.
