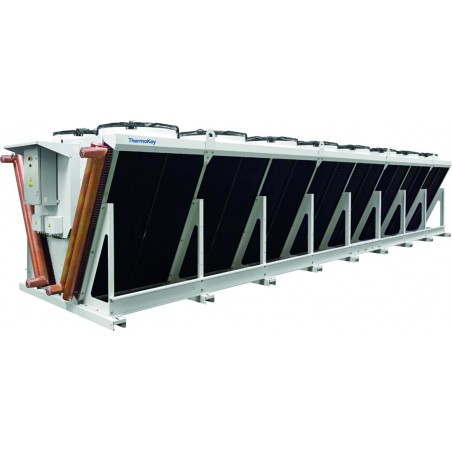

THERMOKEY TURBO-J

Condensador THERMOKEY TURBO-J

Condenser THERMOKEY TURBO-J

• Aplicación: Condensación de gas
• Gama potencias desde 10 hasta 100 hasta 1915 kW (R404A, Tc= 40 °C, T1= 25 °C)
• Diámetro ventiladores Ø 900 mm, motor AC o EC

Características técnicas:

• Geometría alta eficiencia
• Posibilidad módulos, desde 2 hasta 16 ventiladores
• 8 niveles sonoros
• Tubos en cobre o inox AISI 304
• Paquete aleteado disponible en diferentes materiales
• Accesorios disponibles
• AFS (Air Fresh System) disponible
• Carrocería en acero galvanizado pintada

From Thermokey’s R&D experience “Turbo-J”, an innovative series of double coil condensers, has come into being. This new series is capable of fully satisfying the needs of industrial refrigeration and air - conditioning operators.

The new Turbo-J series has been designed, in order to be used with all environment-friendly refrigerants. The capacities of this series range from 100 kW to 1915 kW measured at nominal conditions (ENV 327 Norm).

The extraordinary performance of these condensers is the result of an optimal combination of new high-efficiency aluminium fins, 3/8” copper tubes with a special inner corrugation and new fans which can develop high air flow with reduced current absorption and low sound emissions.

The Turbo-J series is based on a modular design with a RAL 7035 oven painted galvanized steel housing and can use up to sixteen 900 mm fans with 8 sound power levels, with a single or double fan row.

The following customizations are available upon request:

- Speed controllers with phase cut, voltage step or inverter technology.

- Wirings and junction boxes can be standard or fitted according to specific requests.

- Special materials for all types of applications and installation environments.

An innovative “adiabatic” system AFS (Air Fresh System) is also available on request: this automatic system, developed by Thermokey, enables the heat exchanger to keep the same performance level even when the air temperature is higher than the design conditions.

Modelos:

• THERMOKEY MICROCHANNEL
• THERMOKEY TURBO-LINE
• THERMOKEY TURBO-J

Consulte más datos técnicos en el catálogo.
