THERMOKEY LIGHT CUBIC

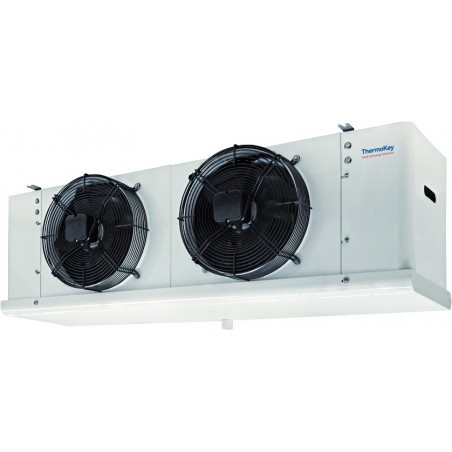

Evaporador THERMOKEY LIGHT CUBIC

Evaporator/Unit Cooler THERMOKEY LIGHT CUBIC

• Aplicación: Pequeñas y Medianas cámaras
• Gama potencias:

- funcionamiento expansión directa: desde 2 hasta 48 kW
(R404A, Te= -8 °C, T1= 0 °C, RH= 85%)
- funcionamiento brine: desde 1 hasta 20 kW
(Ethylene glycol 30%, Tw1= -10 °C, Tw2= -5 °C, T1= 0 °C, RH= 85%)

• Diámetro ventiladores Ø 300, 350, 400 y 450 mm

Características técnicas:

• Posibilidad modulos, desde 1 hasta 4 ventiladores
• Paso de aletas: 4.0 - 6.0 mm
• Estructura solida en acero galvanizado, embocaduras en ABS
• Desescarche eléctrico disponible

THERMOKEY presents a new direct expansion unit coolers series designed for small and medium cold rooms for storage of fresh or frozen goods.

PH series fin spacing 4,0 mm for temperatures 15 ÷ 2°C
PM series fin spacing 6,0 mm for temperatures 2 ÷ -20°C

The heat exchanger coil is produced using a new geometry designed specifically for refrigeration, with high efficiency corrugated surface “TK” aluminium fins and ½” diameter copper tubes internally grooved.
The casing is made in RAL 9010 painted galvanized steel with some parts in ABS thermoplastic resin.
All models use single-phase 230V-50/60Hz fan motors with IP54 protection and internal thermalcontact. Four different diameters of fan motors are available: Ø300, Ø350, Ø400 and Ø450 mm with a number of fan motors from 1 to 4 for each single fan diameter.
Each fan is equipped with a connection box for electrical wiring.

The PH and PM unit cooler series can be equipped with:
- Electrical defrosting system
- Three-phase 400V-50/60Hz fan motors
- Air streamers

Series:

• THERMOKEY LIGHT CUBIC
• THERMOKEY COMERCIAL DOBLE FLUJO
• THERMOKEY INDUSTRIAL
• THERMOKEY INDUSTRIAL DOBLE FLUJO
• THERMOKEY BLAST FREEZER
• THERMOKEY FRUIT COOLERS
• THERMOKEY RADIAL

Modelos:

• THERMOKEY PH
• THERMOKEY PM

Consulte en el catálogo más datos técnicos.
