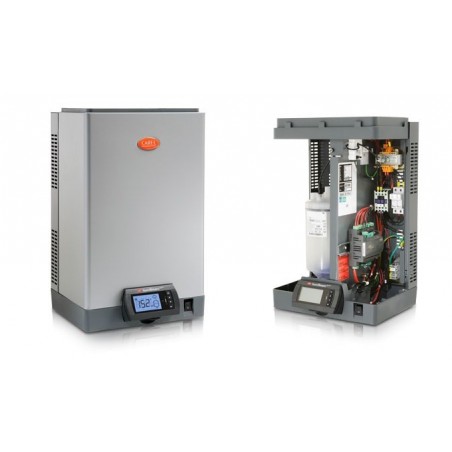

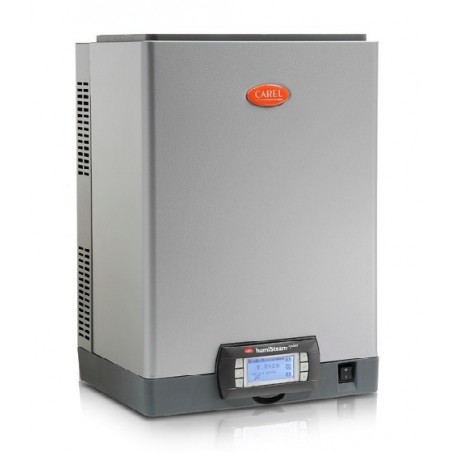

CAREL HUMISTEAM UE009XD001

Humidificador de vapor CAREL HUMISTEAM UE009XD001

Humidifier CAREL HUMISTEAM UE009XD001

Humidificador de vapor por electrodos sumergidos HUMISTEAM es el resultado de la experiencia de 30 años de CAREL en el campo de la humectación por vapor, y es la elección más racional para una amplia variedad de aplicaciones: ambientes civiles, oficinas, instalaciones industriales y baños de vapor.

Características técnicas:

• Capacidad de 1 a 130 kg/h
• Potencia absorbida 750W/kg agua
• Control con 1 ó 2 sondas
• Cilindros desechables

HumiSteam funciona con agua de la red con conductividad entre 75 y 1.250 μS/cm y su software de control se adapta automáticamente a las características del agua, optimizando la vida de funcionamiento sin mantenimiento.

La función arranque rápidolo hace ideal para una amplia variedad de aplicaciones. Todos los modelos humiSteam disponen de conexión Modbus®.

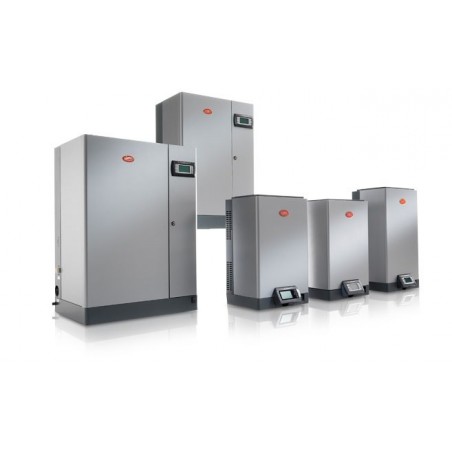

La gama humiSteam consta de tres versiones:

• humiSteam Basic (o “Y”), controlado por un controlador externo o por BMS, con rango de 1 a 65 kg/h;
• humiSteam X-Plus (o “X”), con control integrado, sonda de límite y rango de 1 a 130 kg/h
• humiSteam “Wellness” dedicado a los baños de vapor, disponible hasta 65 kg/h. Todas las unidades vienen con bomba de drenaje.

Los modelos X-Plus y Wellness también disponen de funcionamiento automático en franjas horarias y la opción de otros protocolos de comunicaciones.

AFS system (Anti Foaming System): detects foam to prevent droplets of water being carried by the steam;

• cylinders with galvanised electrodes and anti-scale filter at bottom, openable cylinders also available;
• steam production with continuous modulation from 20% to maximum rating (10% for 90 & 130 kg/h models);
• built-in conductivity sensor and control software to optimise energy efficiency and maintenance costs, with constant performance throughout cylinder life.
• automatic water drain after 3 days of inactivity

humiSteam Xplus:

Type "X" humiSteam humidifiers represent Carel's high-end solution in immersed electrode humidifiers. They have a built-in controller with graphic display and keypad for programming and controlling operation.
The following modes can be selected at any time:
• ON/OFF by external humidistat;
• proportional to external signal;
• proportional to external signal plus a maximum humidity limit probe in the duct;
• modulating based on set point and humidity probe reading ;
• modulating based on set point and humidity probe reading and limit probe in the duct.
Steam flow-rate is modulated continuously from 20 to 100% of maximum capacity (10 to 100% in the 90 and 130 kg/h models), except for in ON/OFF mode, where production is all or nothing.
Type "X" humiSteam humidifiers can accept the following external signals, selected on the keypad: voltage-free contact from humidistat, 0-1 V, 0-10 V, 2-10 V, 0-20 mA, 4-20 mA.
Type "X" controllers exploit all the advantages of pCO technology, the family of CAREL programmable controllers:
• easy to use, graphic display with clear messages in different languages;
• operation based on daily and weekly time bands with variable set points;
• BMS connectivity via various types of LAN (e.g.: Modbus® (standard), BACnet™, LON®);
• complete diagnostics with text messages, alarm log with time stamping;
• remote diagnostics via GSM (optional);
• automatic drain due to inactivity.

humiSteam basic:

humiSteam basic (Y) is suitable for installation in civil environments, offices, hospitals and industrial facilities, and is designed for installation both in rooms, using the steam blower, and air ducts, using the linear steam distributors.
humiSteam basic is ideal for applications where steam production is controlled by an external signal, i.e. BMS or humidistat, and comes in a range from 1.5 to 65 kg/h.
Steam production is controlled by an external signal:
• ON/OFF mode: a simple contact (for example, a humidistat) starts/stops steam production.
• proportional mode: the humidifier produces a quantity of steam that is directly proportional to the signal (0-10 V, 2-10 V, 0-20 mA, 4-20 mA) generated by the external controller, always between 20% and 100% of maximum capacity.
Type "Y" humidifiers have a display with numbers and icons that shows the operating conditions and any diagnostic information extremely clearly and intuitively.
In addition, they come with RS485 interface with Modbus protocol for remote configuration and control via BMS.

humiSteam Wellness:

The humiSteam Wellness model has been especially made to meet the typical demands of steam bath applications, with the software thus able to manage:
• daily and weekly time bands;
• different temperature set points for the time bands;
• up to 3 actuators for the distribution of essences, and 1 for the disinfection cycle;
• up to 2 fans (cabin and exhaust) and cabin light;
• easy to use, graphic display with icons and messages in different languages;
• connectivity via various types of LAN (Modbus®, BACnet™, LON);
• operating hour counter and alarm log with time stamping;
In addition, the display-keypad can be detached from the humidifier and connected in a remote position, to simplify integration into OEM products.
The following modes can be selected at any time:
• ON/OFF by external humidistat;
• proportional to external signal;
• modulating based on set point and temperature probe reading;
Steam flow-rate is modulated continuously from 20 to 100% of maximum capacity, except for in ON/OFF mode, where production is all or nothing.
humiSteam Wellness uses mains water and completely automatically manages water concentration and any formation of foam, for maximum steam bath safety.

Modelos:

Alimentación 230 Vac Monofásico:

• CAREL HUMISTEAM UE001XD001
• CAREL HUMISTEAM UE003XD001
• CAREL HUMISTEAM UE005XD001
• CAREL HUMISTEAM UE009XD001

Alimentación 400 Vac III Trifásico:

• CAREL HUMISTEAM UE003XL001
• CAREL HUMISTEAM UE005XL001
• CAREL HUMISTEAM UE008XL001
• CAREL HUMISTEAM UE010XL001
• CAREL HUMISTEAM UE015XL001
• CAREL HUMISTEAM UE018XL001
• CAREL HUMISTEAM UE025XL001
• CAREL HUMISTEAM UE035XL001
• CAREL HUMISTEAM UE045XL001
• CAREL HUMISTEAM UE065XL001
• CAREL HUMISTEAM UE090XL001
• CAREL HUMISTEAM UE0130XL001
• CAREL HUMISTEAM UE001XD001
• CAREL HUMISTEAM UE003XD001
• CAREL HUMISTEAM UE005XD001
• CAREL HUMISTEAM UE009XD001

Consulta el precio de cualquier modelo.

.
