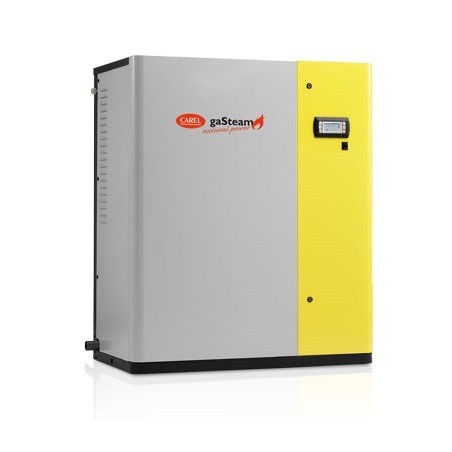

CAREL GASTEAM UG180HD003

Humidificador de vapor CAREL GASTEAM UG180HD003

Humidifier CAREL GASTEAM UG180HD003

GASTEAM trabaja con agua potable de la red y con agua desmineralizada procedente de ósmosis inversa. El humidificador a gas se instala como un sistema de calefacción normal.

Características técnicas:

• GLP o gas natural
• Eficiencia energética 92-96%
• Estanqueidad Clase C
• Quemador pre-mezcla a presión negativa
• Modulación del 25 al 100%
• gaSteam asegura una eficiencia energética de las mejores del mercado (del 92% al 96%) gracias a las soluciones tecnológicas de vanguardia, como el intercambiador de calor acero de inoxidable.
• La seguridad está garantizada por un sistema de dispositivos redundantes controlados por un software completo y agradable para el usuario.
• La producción de vapor puede ser modulada de forma continua desde el 25% (12,5% para el UG180) hasta la salida máxima.
• El sistema de control del gaSteam ofrece control integrado con sondas de humedad, o producción modulada por un controlador externo.
• gaSteam puede ser conectado a una red vía Modbus® (estándar) u otros protocolos opcionales. El gaSteam está probado por las principales organizaciones internacionales de seguridad y está disponible en modelos de 45, 90 y 180 kg/h de vapor.

The family of gaSteam humidifiers includes 45, 90 and 180 kg/h models. Each of these is characterized by higher total thermal efficiency: this allows you to take full advantage of the convenience of gas. The heat exchanger, which is easily removable and cleanable, is made of stainless steel.

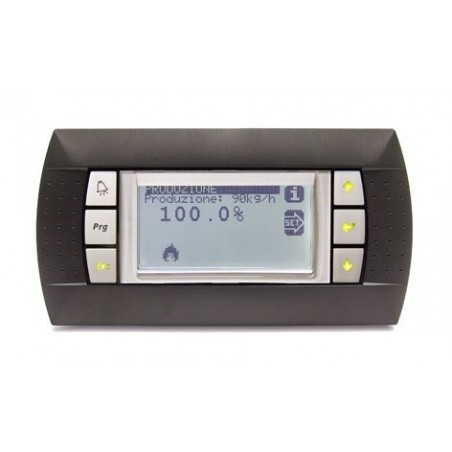

The gaSteam humidifier can use either natural gas or propane. It can also be supplied with mains water or with demineralized water. The pHC control used makes the most of all the best characteristics of pCO programmable controllers, which have always been a point of excellence of the company. The user interface consists of a backlit display, which allows the simultaneous and flexible use of graphical icons and texts in various languages. The pHC also allows connection to internet: with the pCO family pLAN protocol (via RS485 interface included), or with the communication protocols Modbus®, Echelon®, BACnet™, RS232 and GSM via optional interfaces. The control includes both the autonomous control loop (of humidity or temperature with active probe and eventually a second limit probe, and the operation modes ON/OFF and Proportional with signal from an external controller. It can also control a dehumidifier, and includes a complete set of diagnostics for maintenance.
Safety
gaSteam is equipped with various safety devices that include:
• Pre-mix type burner with sealed chamber and forced ventilation;
• air/gas control valve with double safety clasp;
• safety vacuum switch on combustion air input;
• temperature sensor of exhaust fumes, which allows you to control any malfunction and to report in advance an excessive accumulation of limescale on the exchanger;
• flame detector in the burner that closes the gas valve in the event of malfunctions;
• The patented Anti Foaming System;
• water level sensor on different levels;
• automatic control system of the conductivity of the water, to avoid corrosion.

Modelos:

• CAREL GASTEAM UG180HD003
• CAREL GASTEAM UG045HD003
• CAREL GASTEAM UG090HD003

Consulta el precio de cualquier modelo.

.
