CAREL OPTIMIST EC080

Humidificador CAREL OPTIMIST EC080

Humidifier CAREL OPTIMIST EC080

OPTIMIST es un humidificador y refrigerador evaporativo que atomiza el agua en gotitas finísimas que sustraen el calor al aire, humectado y refrigerado. Utiliza una bomba de paletas para presurizar el agua, atomizándola sucesivamente por medio de boquillas especiales.

Combina la acción de un inverter que regula la velocidad, con la de 2 electroválvulas que activan solo las boquillas necesarias

optimist es un sistema completo que en una única solución incluye la humectación y la refrigeración evaporativa que puede ser utilizado para tratar el aire en una CTA (central tratamiento de aire), tanto para humectar el aire en impulsión como para refrigerar indirectamente.

Componentes:

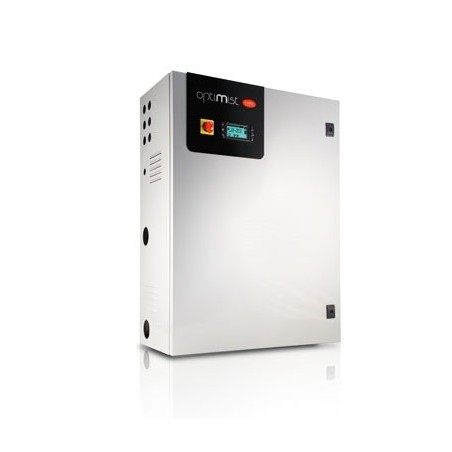

• Estación de bombeo que presuriza el agua (de 4 a 15 bar); incluye también el controlador electrónico que gestiona completamente la estación, controlando la temperatura/humedad en cada sección.

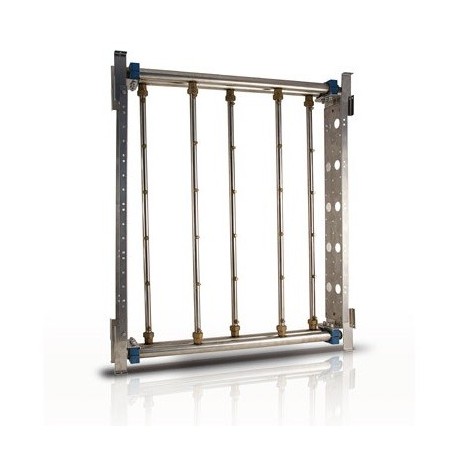

• Sistema de distribución: compuesto por tuberías de acero inoxidable, racores, boquillas atomizadoras y válvulas de drenaje

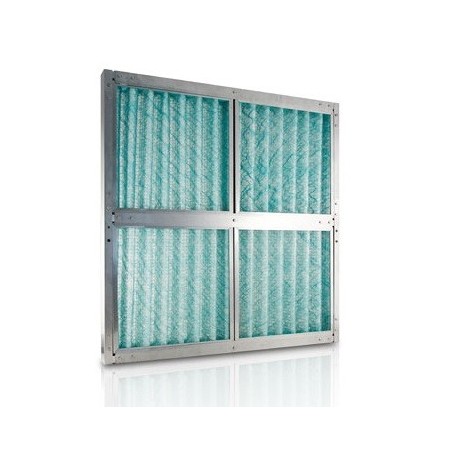

• Separador de gotas: necesario para evitar condensaciones en la CTA; los módulos filtrantes son removibles frontalmente sin desmontar la estructura

Todos los atomizadores CAREL se diseñan siguiendo la normativa VDI6022.

Optimist is a humidifier and adiabatic evaporative cooler that, by atomizing water into small droplets, allows the latter to evaporate spontaneously, subtracting heat from the humidified air, which is cooled at the same time. The system consists of a cabinet, inside which there is a flap valve pump, with pressures up to 15 bar, and an atomized water distribution rack, to be installed inside the air treatment unit. The sophisticated control system managed by the pCO, which combines the action of the inverter (that regulates the speed and therefore the flow of the pump) and that of the two solenoid valves, which activate only the nozzles that are necessary, allowing the system to operate always at optimum pressure in a wide flow range. The two solenoid valves (placed inside the cabinet) divide the distribution into two independent steps, which can be simultaneously present on the same rack (acting one after the other sequentially) forming two steps of continuous modulation, or they can be separated in two different distribution systems, each with a single step, supplying two different areas: this is the typical case of the application of humidification + direct adiabatic cooling in the input duct and indirect adiabatic cooling in the output duct, with heat exchanger between the two air treatment units.
The optiMist cabinet is available in the following capacities: 50, 100, 200, 400, 800 e 1000 l/h. The distribution system can be selected from a large list of available codes, depending on the size of the duct and the atomization required. optiMist can be used with demineralized water, but also with mains water, as long as the unit is cleaned more frequently.

Modelos:

(Precio a consultar dependiendo de estudio personalizado de la instalación)

.
