BALTIMORE PTE

Torre de refrigeración Baltimore PTE, de bajo nivel sonoro, con ventiladores axiales. Bajo consumo de energia. Fácil mantenimiento.

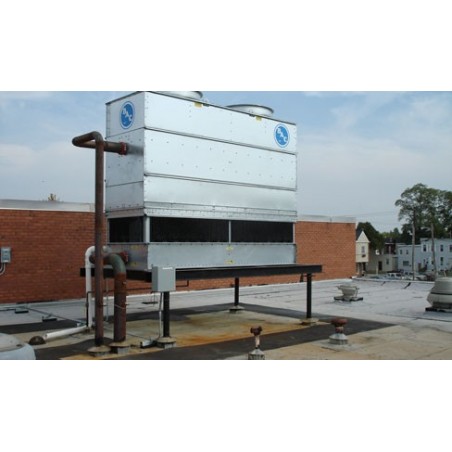

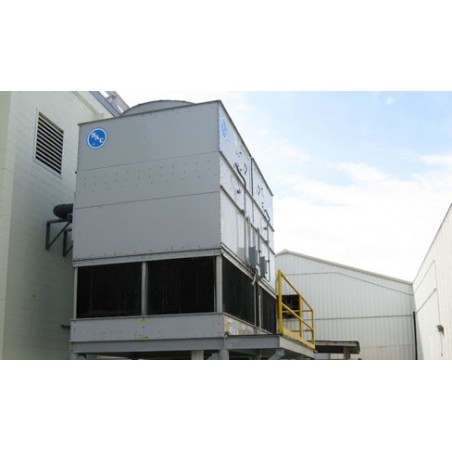

Cooling Tower Baltimore PTE

Key benefits:

Low energy consumption

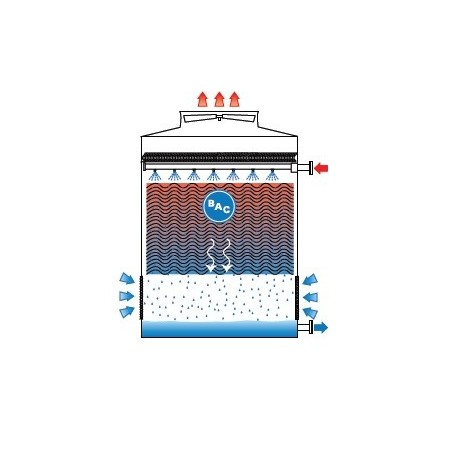

• Evaporative cooling for system-wide energy saving at lower operating temperatures.
• Axial fan uses half the energy of similar centrifugal fan units.
• Factory tested high efficiency Versapak fill with maximum air/water contact at low air pressure drops
• High efficiency fan motors

Low noise

• PTE features low noise axial fans. To reduce noise even further, choose for Whisper Quiet fans.

• Factory designed, tested and rated sound attenuation is available on the discharge for further noise reduction.
• Water silencers achieve noise levels close to those of crossflow towers. Water silencers come always with Whisper Quiet fans.

Easy to maintain

• The PTE open cooling tower is easier to maintain than other induced draft counterflow cooling towers.

• BranchLok water distribution - each branch removable for easy cleaning.
• Combined inlet shields for easy no-tool removal.

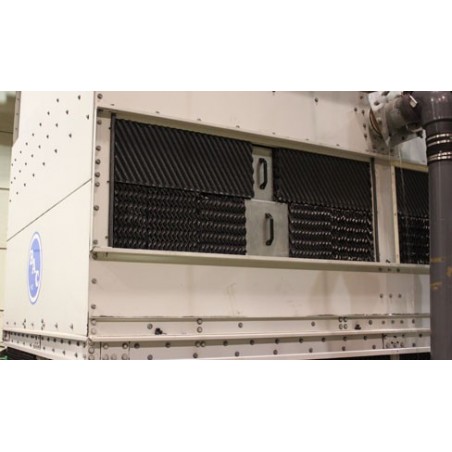

• Fill bundle modules, with optional handles and removable side panels for better and easier fill inspection and replacement.
• Motor adjusters: externally accessible and locking wrench for easy motor alignment and belt tensioning.
• Full cold water basin access when removing the combined inlet shields.
• Fans easy accessible via sliding access door.
• Optional clean out port helps remove silt and sludge from the cooling tower basin.
• Removable suction strainer anti-vortex hood.

Operational safety

• Easy-clean and easy-inspect PTE towers reduce hygiene risks from bacteria (eg Legionella) or biofilm inside.

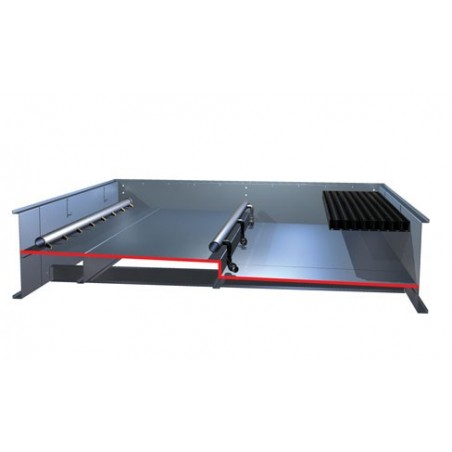

• Self-cleaning cold water basin and fill above sloped basin to flush out dirt and debris.
• Factory tested and Eurovent certified high efficient drift eliminators.
• Combined inlet shields block sunlight to prevent biological growth in the tower, filter the air and stop water splashing outside.
• Optional sump sweeper piping prevents sediment collecting in the cold water basin.
